Linnea

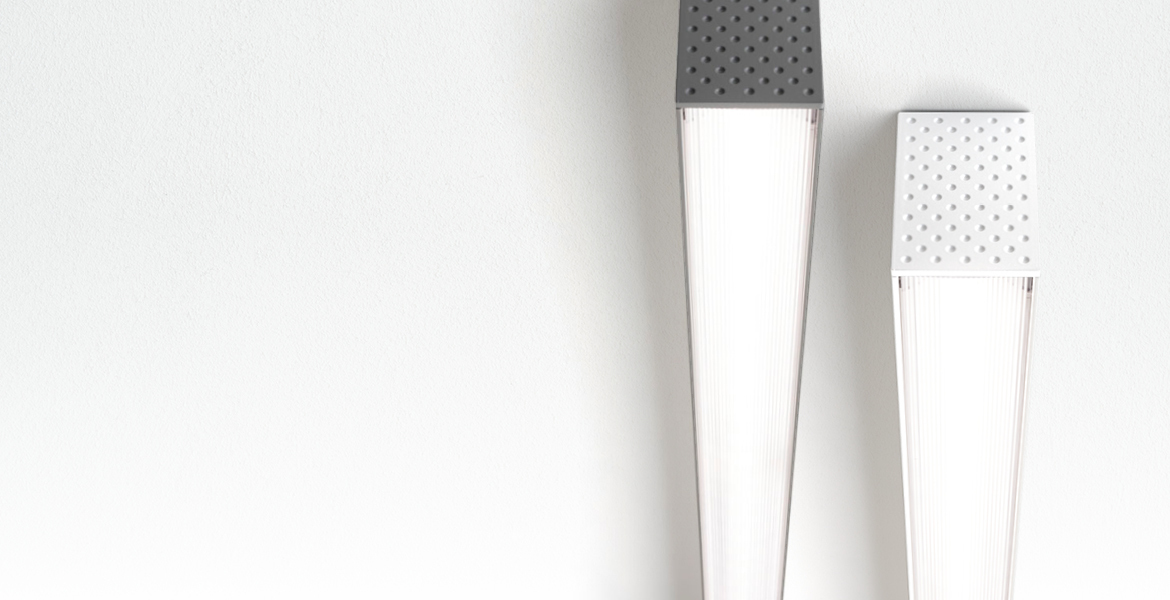

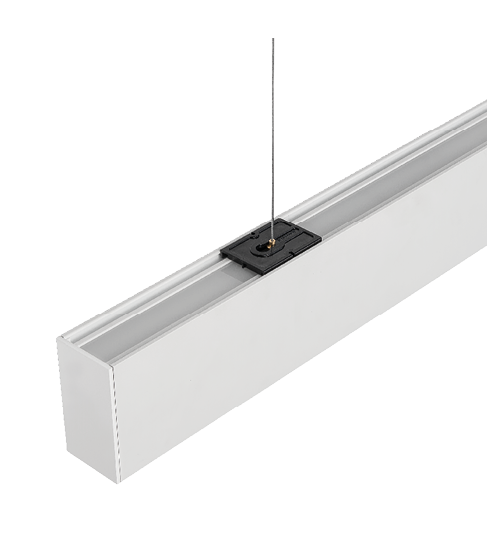

LINNEA is a linear luminaire built with an extruded aluminium profile for suspended installation, installation mounted to the ceiling or recessed installation. It stands out thanks to its minimal design and its microprismatic diffuder which generates very homogeneous lighting with optimal visual comfort. As a new product, the range is increased with a LINNEA MIXTO version, with direct / Indirect lighting.

Linnea

Technical characteristics

Installation	Recessed Mounting \| Suspended / surface
CRI	> 80
IP	20-44 \| 30

Range power (W)	26 - 57
Color temperature (ºK)	3000 \| 4000
Light range	3720 - 9000
Dali option
Version	Standard \| DALI2

Downloads

References

Use the filters to see the model reference of this product that best fits your project:

Reference	Version	Gross lumen output	Power	Temperature	IP
LE4L3OB	Standard	3720	26,8	3000	20-44
LE4L3OG	Standard	3720	26,8	3000	20-44
LI4L3OB	Standard	3720	26,8	3000	30
LI4L3OG	Standard	3720	26,8	3000	30
LE4L4OB	Standard	4000	26,8	4000	20-44
LE4L4OG	Standard	4000	26,8	4000	20-44
LI4L4OB	Standard	4000	26,8	4000	30
LI4L4OG	Standard	4000	26,8	4000	30
LE6L3OB	Standard	5580	40,2	3000	20-44
LE6L3OG	Standard	5580	40,2	3000	20-44
LI6L3OB	Standard	5580	40,2	3000	30
LI6L3OG	Standard	5580	40,2	3000	30
LE4H3OB	Standard	5600	38	3000	20-44
LE4H3OG	Standard	5600	38	3000	20-44
LI4H3OB	Standard	5600	38	3000	30
LI4H3OG	Standard	5600	38	3000	30
LE4H4OB	Standard	6000	38	4000	20-44
LE4H4OG	Standard	6000	38	4000	20-44
LE6L4OB	Standard	6000	40,2	4000	20-44
LE6L4OG	Standard	6000	40,2	4000	20-44
LI4H4OB	Standard	6000	38	4000	30
LI4H4OG	Standard	6000	38	4000	30
LI6L4OB	Standard	6000	40,2	4000	30
LI6L4OG	Standard	6000	40,2	4000	30
LE6H3OB	Standard	8400	57	3000	20-44
LE6H3OG	Standard	8400	57	3000	20-44
LI6H3OB	Standard	8400	57	3000	30
LI6H3OG	Standard	8400	57	3000	30
LE6H4OB	Standard	9000	57	4000	20-44
LE6H4OG	Standard	9000	57	4000	20-44
LI6H4OB	Standard	9000	57	4000	30
LI6H4OG	Standard	9000	57	4000	30
LE4L3DOB	DALI2	3720	26,8	3000	20-44
LE4L3DOG	DALI2	3720	26,8	3000	20-44
LI4L3DOB	DALI2	3720	26,8	3000	30
LI4L3DOG	DALI2	3720	26,8	3000	30
LE4L4DOB	DALI2	4000	26,8	4000	20-44
LE4L4DOG	DALI2	4000	26,8	4000	20-44
LI4L4DOB	DALI2	4000	26,8	4000	30
LI4L4DOG	DALI2	4000	26,8	4000	30
LE6L3DOB	DALI2	5580	40,2	3000	20-44
LE6L3DOG	DALI2	5580	40,2	3000	20-44
LI6L3DOB	DALI2	5580	40,2	3000	30
LI6L3DOG	DALI2	5580	40,2	3000	30
LE4H3DOB	DALI2	5600	38	3000	20-44
LE4H3DOG	DALI2	5600	38	3000	20-44
LI4H3DOB	DALI2	5600	38	3000	30
LI4H3DOG	DALI2	5600	38	3000	30
LE4H4DOB	DALI2	6000	38	4000	20-44
LE4H4DOG	DALI2	6000	38	4000	20-44
LE6L4DOB	DALI2	6000	40,2	4000	20-44
LE6L4DOG	DALI2	6000	40,2	4000	20-44
LI4H4DOB	DALI2	6000	38	4000	30
LI4H4DOG	DALI2	6000	38	4000	30
LI6L4DOB	DALI2	6000	40,2	4000	30
LI6L4DOG	DALI2	6000	40,2	4000	30
LE6H3DOB	DALI2	8400	57	3000	20-44
LE6H3DOG	DALI2	8400	57	3000	20-44
LI6H3DOB	DALI2	8400	57	3000	30
LI6H3DOG	DALI2	8400	57	3000	30
LE6H4DOB	DALI2	9000	57	4000	20-44
LE6H4DOG	DALI2	9000	57	4000	20-44
LI6H4DOB	DALI2	9000	57	4000	30
LI6H4DOG	DALI2	9000	57	4000	30

* Net Lumen output is indicated in technical datasheet.

Accessories
