Sycom

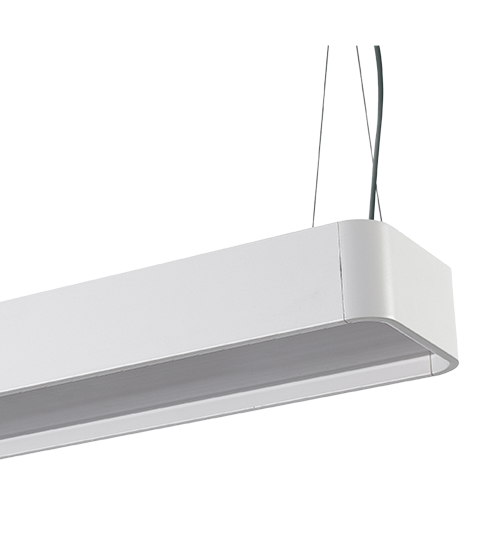

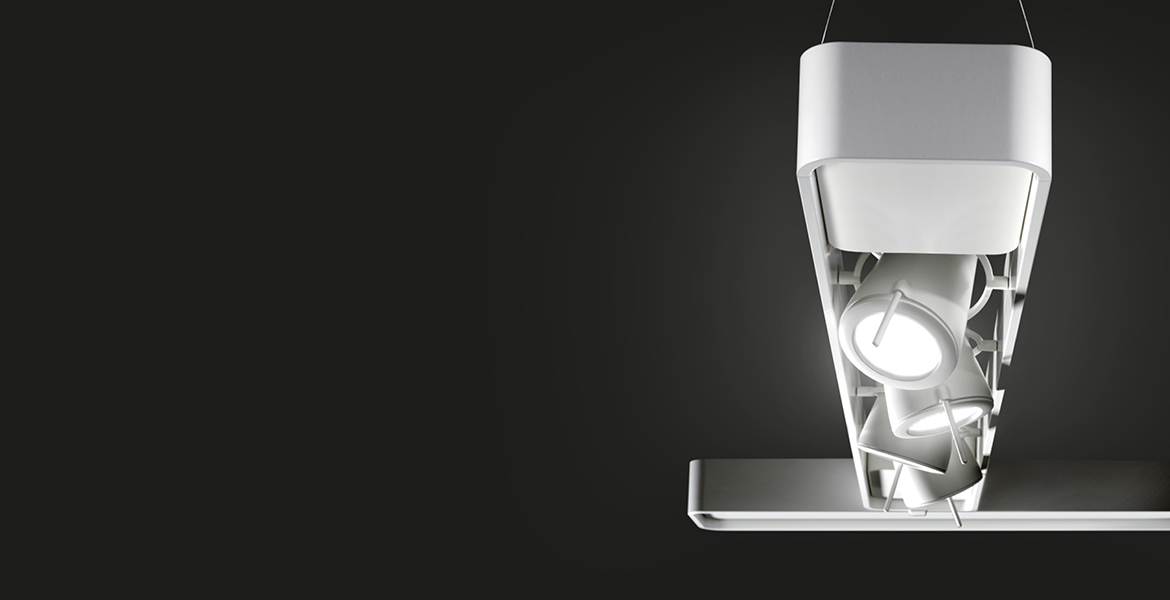

SYCOM is a suspended lighting system that creates a distinctive geometry for each installation. The different modules can be combined with one another in multiple ways.
Technical characteristics
| Installation | Suspended |
| CRI | > 80 |
| IP | 20 | 30 |
| Range power (W) | 11 - 53 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 3040 - 8860 |
| Dali option |
|
| Version | Standard | DALI2 |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | Lum Calc | Version | Gross lumen output | Power | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| SYS2L3B |
|
Standard | 3040 | 26,8 | 3000 | 30 |
|
| SYS2L4B |
|
Standard | 3360 | 26,8 | 4000 | 30 |
|
| SYP223OB |
|
Standard | 3860 | 11,8 | 3000 | 20 |
|
| SYP223SB |
|
Standard | 3860 | 11,8 | 3000 | 20 |
|
| SYP224OB |
|
Standard | 4100 | 11,8 | 4000 | 20 |
|
| SYP224SB |
|
Standard | 4100 | 11,8 | 4000 | 20 |
|
| SYS4L3B |
|
Standard | 6080 | 53,6 | 3000 | 30 |
|
| SYS4L4B |
|
Standard | 6720 | 53,6 | 4000 | 30 |
|
| SYP423OB |
|
Standard | 7720 | 11,8 | 3000 | 20 |
|
| SYP424OB |
|
Standard | 8200 | 11,8 | 4000 | 20 |
|
| SYP424SB |
|
Standard | 8200 | 11,8 | 4000 | 20 |
|
| SYP423SB |
|
Standard | 8860 | 11,8 | 3000 | 20 |
|
| SYS2L3DB |
|
DALI2 | 3040 | 26,8 | 3000 | 30 |
|
| SYS2L4DB |
|
DALI2 | 3360 | 26,8 | 4000 | 30 |
|
| SYS4L3DB |
|
DALI2 | 6080 | 53,6 | 3000 | 30 |
|
| SYS4L4DB |
|
DALI2 | 6720 | 53,6 | 4000 | 30 |
|
* Net Lumen output is indicated in technical datasheet.
