Cosmos

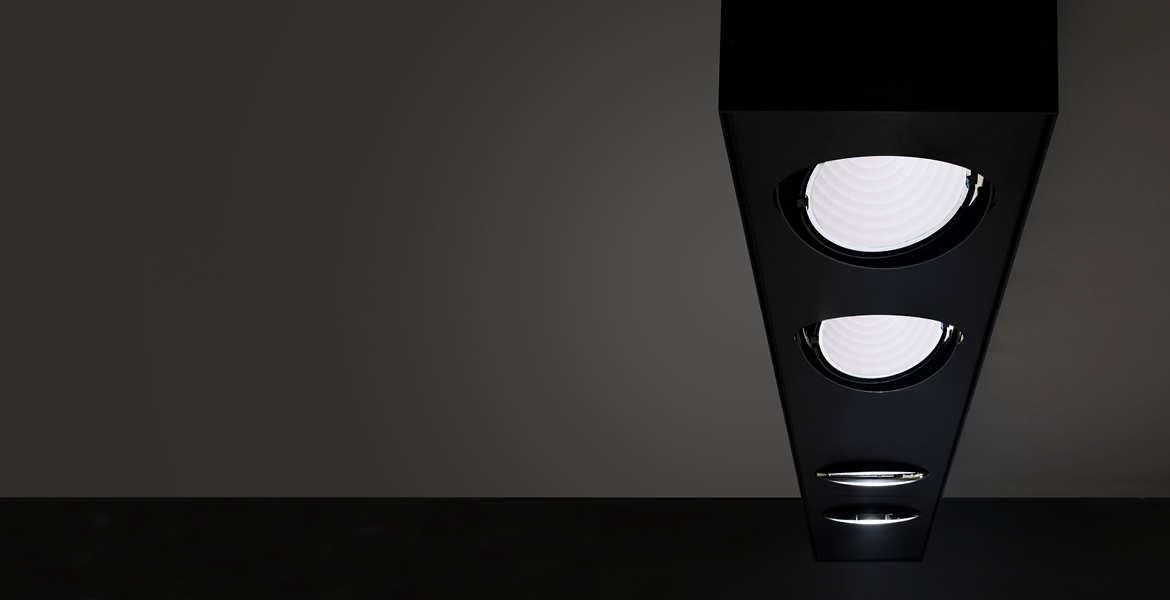

COSMOS is a mixed structural system for spot and linear lighting. It is made of an extruded and lacquered aluminium profile housing. It can be installed suspended, recessed or ceiling mounted. The set is completed with fast installation lighting modules that enable the lighting properties of the installation to be changed at any point.
Technical characteristics
| Installation | Suspended / surface |
| CRI | > 80 |
| IP | 20 |
| Range power (W) | 11 - 53 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 1930 - 6720 |
| Version | Standard |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | Lum Calc | Version | Gross lumen output | Power | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| CSP123FB |
|
Standard | 1930 | 11,8 | 3000 | 20 |
|
| CSP123FN |
|
Standard | 1930 | 11,8 | 3000 | 20 |
|
| CSP124FB |
|
Standard | 2050 | 11,8 | 4000 | 20 |
|
| CSP124FN |
|
Standard | 2050 | 11,8 | 4000 | 20 |
|
| CSS23OB |
|
Standard | 3040 | 26,8 | 3000 | 20 |
|
| CSS23ON |
|
Standard | 3040 | 26,8 | 3000 | 20 |
|
| CSS24OB |
|
Standard | 3360 | 26,8 | 4000 | 20 |
|
| CSS24ON |
|
Standard | 3360 | 26,8 | 4000 | 20 |
|
| CSP223FB |
|
Standard | 3860 | 11,8 | 3000 | 20 |
|
| CSP223FN |
|
Standard | 3860 | 11,8 | 3000 | 20 |
|
| CSP224FB |
|
Standard | 4100 | 11,8 | 4000 | 20 |
|
| CSP224FN |
|
Standard | 4100 | 11,8 | 4000 | 20 |
|
| CSS43OB |
|
Standard | 6080 | 53,6 | 3000 | 20 |
|
| CSS43ON |
|
Standard | 6080 | 53,6 | 3000 | 20 |
|
| CSS44OB |
|
Standard | 6720 | 53,6 | 4000 | 20 |
|
| CSS44ON |
|
Standard | 6720 | 53,6 | 4000 | 20 |
|
* Net Lumen output is indicated in technical datasheet.
