ULine

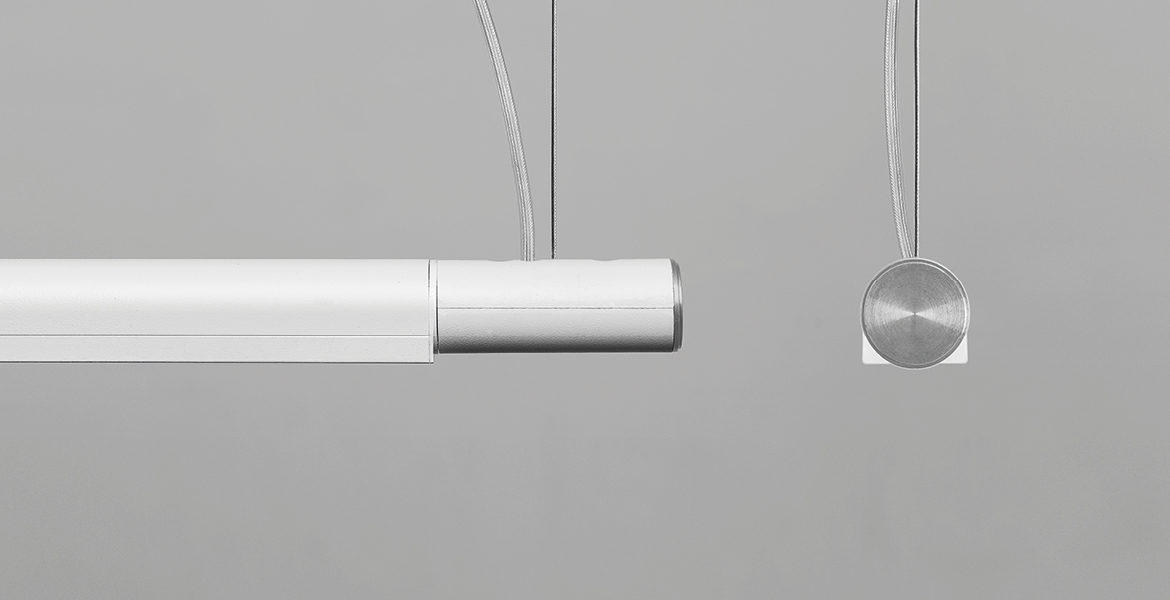

U-LINE is a minimalist linear system for suspended installation which can be integrated into any space surprisingly easily. It has a 360º light rotation system that makes it an extremely versatile luminaire. U-LINE can be installed in continuous strips by means of an installation accessory. The luminaire consists of the power supply connection (available in different power and colors) and the light source itself (available in different powers and temperature colors).

ULine

Technical characteristics

Installation	Suspended
CRI	> 80
IP	30

Range power (W)	23 - 34
Color temperature (ºK)	3000 \| 4000
Light range	2480 - 3960
Version	Standard

Downloads

References

Use the filters to see the model reference of this product that best fits your project:

Reference	Version	Gross lumen output	Power	Temperature	IP
UL43B	Standard	2480	23	3000	30
UL43N	Standard	2480	23	3000	30
UL44B	Standard	2640	23	4000	30
UL44N	Standard	2640	23	4000	30
UL63B	Standard	3720	34,6	3000	30
UL63N	Standard	3720	34,6	3000	30
UL64B	Standard	3960	34,6	4000	30
UL64N	Standard	3960	34,6	4000	30

* Net Lumen output is indicated in technical datasheet.
