C24 Central Battery System

The C24 bank family provides remote power supply for emergency, signal and beacon lights at 24 Vdc.

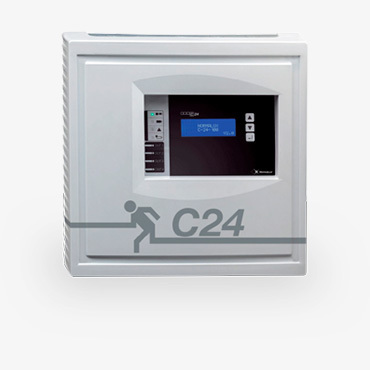

C24 - 100

​​​​​​​

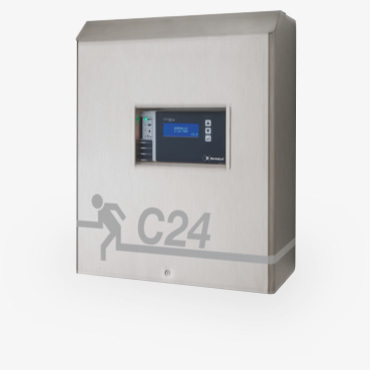

C24 - 300

Covers one fire zone

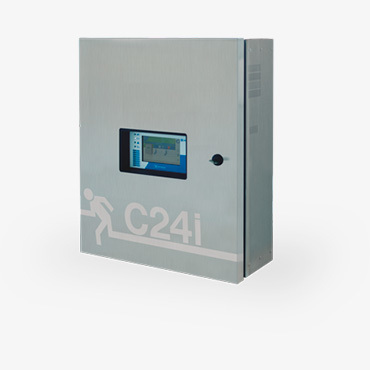

C24i - 300

Covers one fire zone

Manufactured according to the EN50171 norm

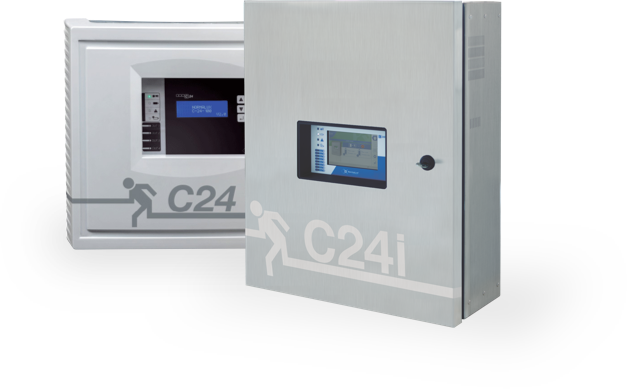

As an innovation, Normalux launches a second generation of central battery systems, known as C24I addressable. These new centrals can control and monitor each item connected to them individually and carry out different actions over them (turn on / off, dim, test, etc).



Compatible with:



C24I Addressable has 8 outputs, improving the C24 models that only had 4. Intelligent control that allows to identify any possible problem and is able to control:

  • The central battery unit itself, as well as the 4 outputs of the standard version
  • The central battery unit itself, the outputs and all the luminaires connected to it individiually in the addressable version.


CE Certificate C24
Instalation Guide


  • Voltage: 230 V AC +/- 10%
  • Wire cross section: 2.5 mm²
  • Output voltage: 24 V DC +/- 20%
  • Output wire section: 2.5 mm²
  • Ambient temperature: -5ºC to 25ºC
  • Class: I
  • IP: IP30
  • Outputs: 4 (C24-100 y C24-300) / 8 (C24I-300)
  • Maximum current: 3.5 A per output



Dimensions:

  • C24-100: 340 x 330 x 90 mm
  • C24-300: 500 x 400 x 200 mm
  • C24I-300: 587 x 460 x 187 mm





Model C24-100
Batteries 2 x 12 V · 7 Ah 2 x 12 V · 9 Ah
Autonomy 1 h 3 h 8 h 1 h 3 h 8 h
Total power output (W) 88 W 36 W 14 W 115 W 48 W 19 W
Maximum current (A) 3,86 1,70 0,76 4,97 2,19 0,97
Phase monitor imput Sí
Output control 4
Potential freecontacts Si
Function indicator Si
Supply indicator for battery Si
Failure Si
Network supply indicator Si
Battery supply indicator Si
Failure alarm indicator Si
Full discharge indicator Si
Active output indicator Si
Communication via bus Si



Model C24-300
Batteries 2 x 12 V · 12 Ah 2 x 12 V · 18 Ah 2 x 12 V · 24 Ah
Autonomy 1 h 3 h 8 h 1 h 3 h 8 h 1 h 3 h 8 h
Total power output (W) 154 W 36 W 27 W 234 W 105 W 42 W 314 W 136 W 58 W
Maximum current (A) 6,62 2,92 1,30 9,94 4,39 1,95 13,25 5,85 2,60
Phase monitor imput Sí
Output control 4
Potential free contacts Si
Function indicator Si
Supply indicator for battery Si
Failure Si
Network supply indicator Si
Battery supply indicator Si
Failure alarm indicator Si
Full discharge indicator Si
Active output indicator Si
Communication via bus Si



Model C24-I300
Batteries 2 x 12 V · 7 Ah 2 x 12 V · 9 Ah 2 x 12 V · 12 Ah 2 x 12 V · 18 Ah 2 x 12 V · 24 Ah
Autonomy 1 h 3 h 8 h 1 h 3 h 8 h 1 h 3 h 8 h 1 h 3 h 8 h 1 h 3 h 8 h
Total power output (W) 88 W 36 W 14 W 115 W 48 W 19 W 154 W 66 W 27 W 234 W 105 W 42 W 314 W 136 W 58 W
Maximum current (A) 3,86 1,70 0,76 4,97 2,19 0,97 6,62 2,92 1,30 9,94 4,39 1,95 13,25 5,85 2,60
Phase monitor imput Sí
Output control 8
Potential free contacts Si
Function indicator Si
Supply indicator for battery Si
Failure Si
Network supply indicator Si
Battery supply indicator Si
Failure alarm indicator Si
Full discharge indicator Si
Active output indicator Si
Communication via bus Si



Compatible with C24

Emergency lighting

Signalling

Step lighting

Light paths

Not only a power supply


Intelligent central battery systems able to warn about any anomaly in the central itself or in any of the four outputs where emergency lighting and or exit signs are connected.


Functioning 100% guaranteed
Duration tests can be customized in the C24 system, even though they are made periodically by default, as well as real time check ups to ensure the functioning of the system.


null

Customizable charging LEDThe C24 system can control the status of the charging LED of the luminaires connected to each of the four outputs.

Ideal for environments where the charging LED could be a nuisance (hotel or hospital rooms)

Turn on: Ok

Turn Off

Blink: Failure
