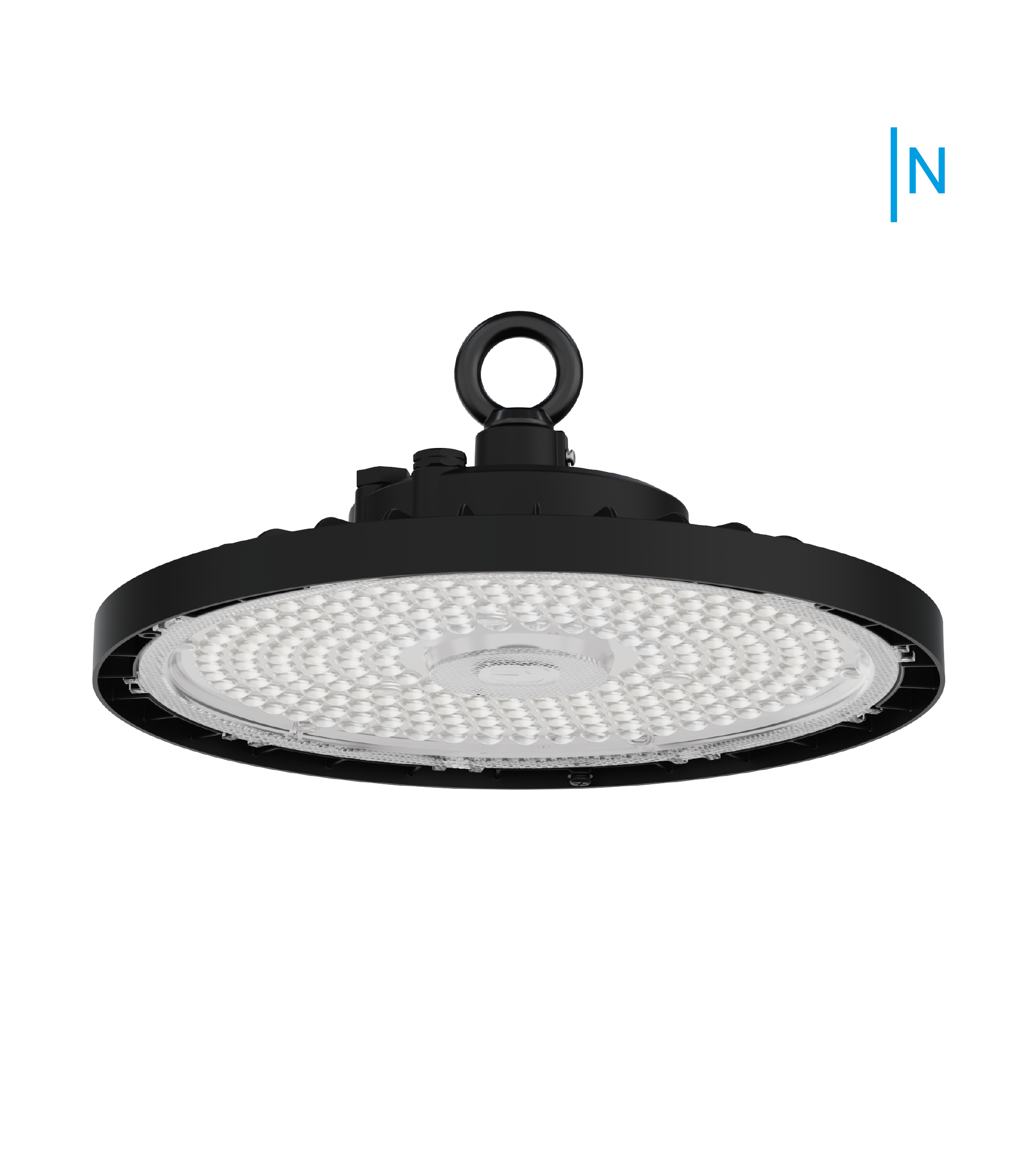

Blok Next

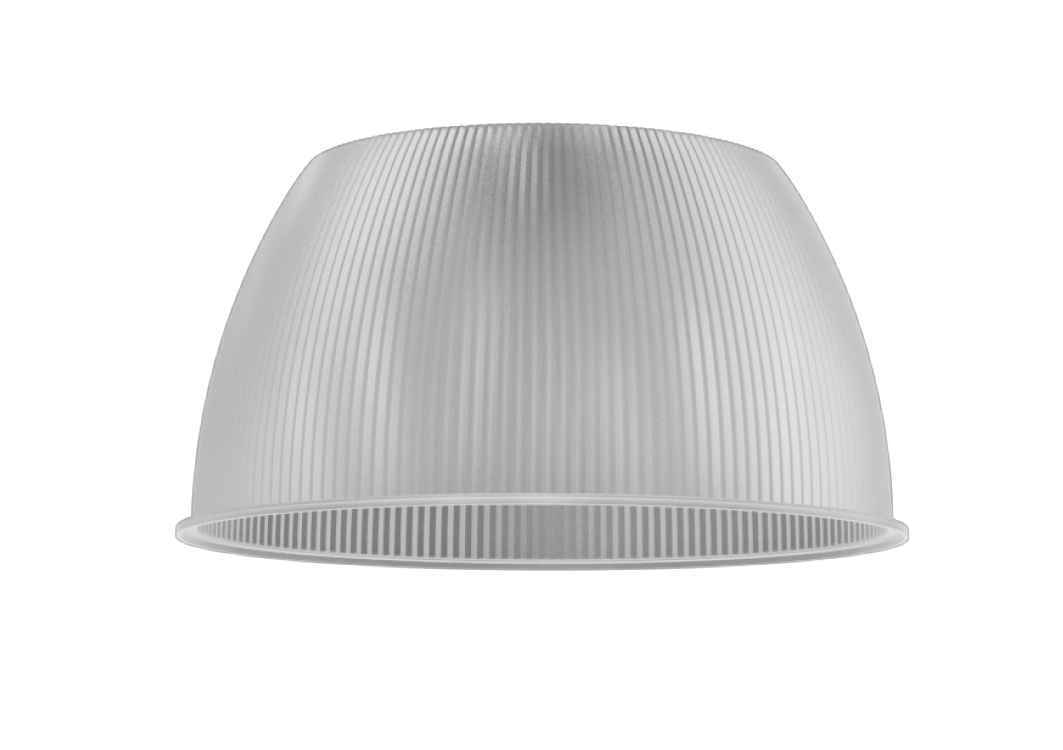

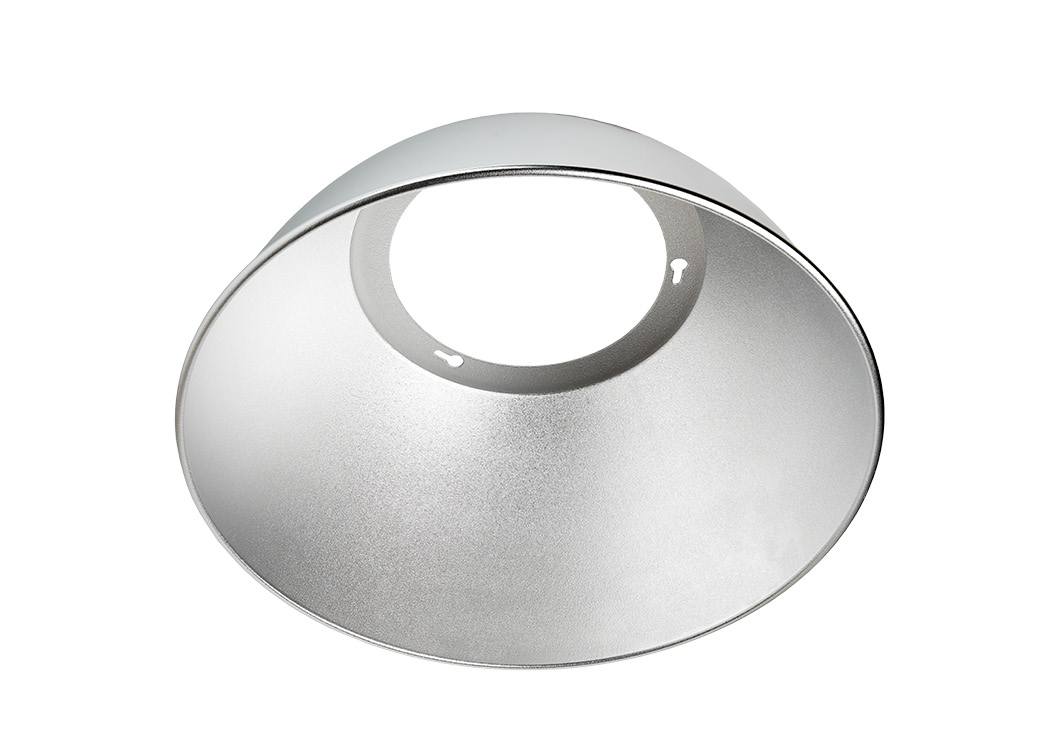

BLOK NEXT emerges as the ideal solution in industrial lighting equipment for illuminating large spaces from considerable heights, boasting exceptional luminous efficiency, with models ranging 155 to 200 lm/W. Available in two versions and three sizes, it offers three different optics and a wide variety of supplementary accessories, including reflectors and versatile mounting systems for both wall and ceiling installations.

Blok Next

Technical characteristics

Installation	Suspended
Color	Black
CRI	> 80
IP	66

Range power (W)	90 - 180
Color temperature (ºK)	4000 \| 5700 \| 6500
Light range	14000 - 36000
Dali option

Downloads

References

Use the filters to see the model reference of this product that best fits your project:

Reference	Net lumen output	Power	Efficiency (lm/W)	Temperature	CRI
BN100-4FN	13398	90	134.0	4000	80
BN100-4MN	13104	90	131.0	4000	80
BN100-4SN	13132	90	131.0	4000	80
BN100-5FN	13398	90	134.0	5700	80
BN100-5MN	13104	90	131.0	5700	80
BN100-5SN	13132	90	131.0	5700	80
BN100-6FN	13398	90	134.0	6500	80
BN100-6MN	13104	90	131.0	6500	80
BN100-6SN	13132	90	131.0	6500	80
BNE100-4FN	17226	90	172.0	4000	80
BNE100-4MN	16848	90	168.0	4000	80
BNE100-4SN	16884	90	168.0	4000	80
BNE100-5FN	17226	90	172.0	5700	80
BNE100-5MN	16848	90	168.0	5700	80
BNE100-5SN	16884	90	168.0	5700	80
BNE100-6FN	17226	90	172.0	6500	80
BNE100-6MN	16848	90	168.0	6500	80
BNE100-6SN	16884	90	168.0	6500	80
BN150-4FN	20097	135	134.0	4000	80
BN150-4MN	19655	135	131.0	4000	80
BN150-4SN	19698	135	131.0	4000	80
BN150-5FN	20097	135	134.0	5700	80
BN150-5MN	19655	135	131.0	5700	80
BN150-5SN	19698	135	131.0	5700	80
BN150-6FN	20097	135	134.0	6500	80
BN150-6MN	19655	135	131.0	6500	80
BN150-6SN	19698	135	131.0	6500	80
BNE150-4FN	25839	135	172.0	4000	80
BNE150-4MN	25272	135	168.0	4000	80
BNE150-4SN	25326	135	168.0	4000	80
BNE150-5FN	25839	135	172.0	5700	80
BNE150-5MN	25272	135	168.0	5700	80
BNE150-5SN	25326	135	168.0	5700	80
BNE150-6FN	25839	135	172.0	6500	80
BNE150-6MN	25272	135	168.0	6500	80
BNE150-6SN	25326	135	168.0	6500	80
BN200-4FN	26796	180	134.0	4000	80
BN200-4MN	26208	180	131.0	4000	80
BN200-4SN	26264	180	131.0	4000	80
BN200-5FN	26796	180	134.0	5700	80
BN200-5MN	26208	180	131.0	5700	80
BN200-5SN	26264	180	131.0	5700	80
BN200-6FN	26796	180	134.0	6500	80
BN200-6MN	26208	180	131.0	6500	80
BN200-6SN	26264	180	131.0	6500	80
BNE200-4FN	34452	180	172.0	4000	80
BNE200-4MN	33696	180	168.0	4000	80
BNE200-4SN	33768	180	168.0	4000	80
BNE200-5FN	34452	180	172.0	5700	80
BNE200-5MN	33696	180	168.0	5700	80
BNE200-5SN	33768	180	168.0	5700	80
BNE200-6FN	34452	180	172.0	6500	80
BNE200-6MN	33696	180	168.0	6500	80
BNE200-6SN	33768	180	168.0	6500	80
BNE100-4DFN	17226	90	172.0	4000	80
BNE100-4DMN	16848	90	168.0	4000	80
BNE100-4DSN	16884	90	168.0	4000	80
BNE100-5DFN	17226	90	172.0	5700	80
BNE100-5DMN	16848	90	168.0	5700	80
BNE100-5DSN	16884	90	168.0	5700	80
BNE100-6DFN	17226	90	172.0	6500	80
BNE100-6DMN	16848	90	168.0	6500	80
BNE100-6DSN	16884	90	168.0	6500	80
BNE150-4DFN	25839	135	172.0	4000	80
BNE150-4DMN	25272	135	168.0	4000	80
BNE150-4DSN	25326	135	168.0	4000	80
BNE150-5DFN	25839	135	172.0	5700	80
BNE150-5DMN	25272	135	168.0	5700	80
BNE150-5DSN	25326	135	168.0	5700	80
BNE150-6DFN	25839	135	172.0	6500	80
BNE150-6DMN	25272	135	168.0	6500	80
BNE150-6DSN	25326	135	168.0	6500	80
BNE200-4DFN	34452	180	172.0	4000	80
BNE200-4DMN	33696	180	168.0	4000	80
BNE200-4DSN	33768	180	168.0	4000	80
BNE200-5DFN	34452	180	172.0	5700	80
BNE200-5DMN	33696	180	168.0	5700	80
BNE200-5DSN	33768	180	168.0	5700	80
BNE200-6DFN	34452	180	172.0	6500	80
BNE200-6DMN	33696	180	168.0	6500	80
BNE200-6DSN	33768	180	168.0	6500	80

Accessories
