Lexa

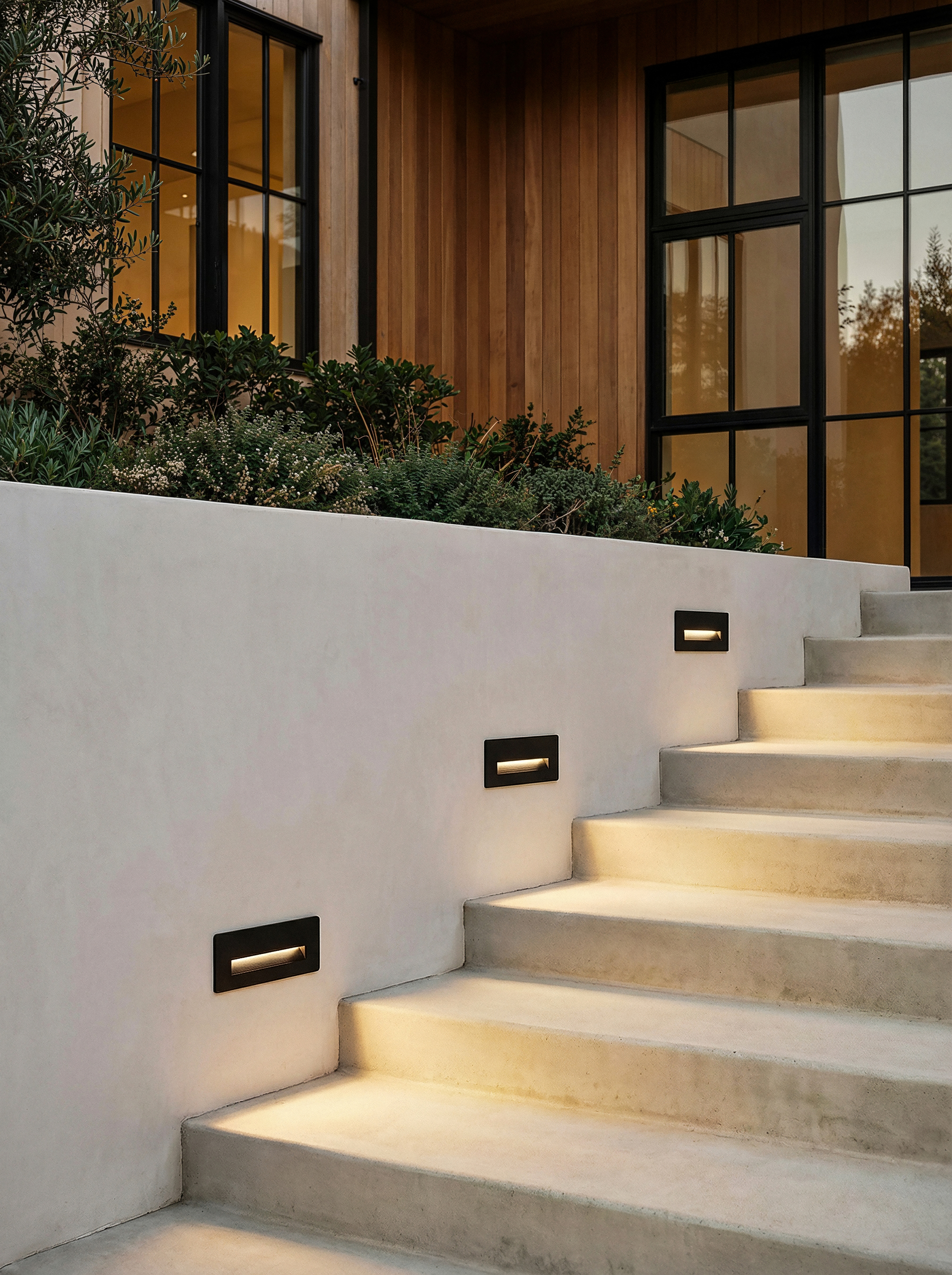

LEXA is a recessed wall luminaire that provides wide light coverage and a high level of shielding to prevent glare, making it ideal for illuminating pathways and staircases in outdoor environments. High-quality finish providing enhanced corrosion protection for over 1400 hours.
Compliant with “Dark Sky” requirements, preventing upward light emissions (B1 U0 G0) and creating an environmentally responsible lighting environment.
Technical characteristics
| Installation | Wall recessed |
| CRI | > 80 |
| IP | 65 |
| Range power (W) | 6 - 6 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 1155 - 1230 |
| Dali option |
|
| Version | Standard | DALI2 |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Version | Gross lumen output | Power | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| GL03 |
|
Standard | 1155 | 6,8 | 3000 | 65 |
|
| GL04 |
|
Standard | 1230 | 6,8 | 4000 | 65 |
|
| GL03D |
|
DALI2 | 1155 | 6,8 | 3000 | 65 |
|
| GL04D |
|
DALI2 | 1230 | 6,8 | 4000 | 65 |
|
* Net Lumen output is indicated in technical datasheet.
