Monem

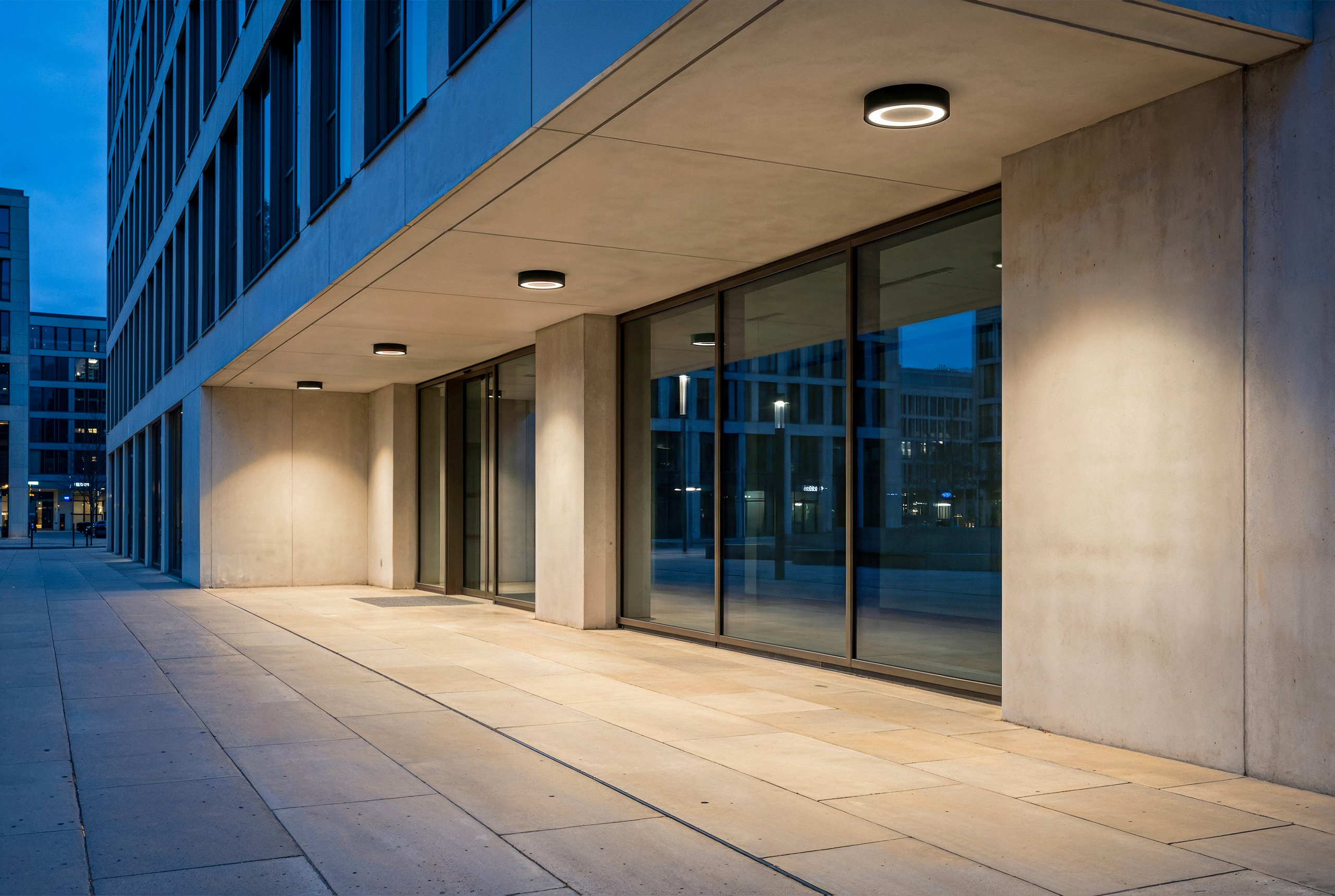

MONEM is a surface-mounted downlight for outdoor environments, featuring a compact design and deep light distributions engineered to maximise the lighting effect in outdoor corridors, porches and entrances. It delivers high visual comfort and excellent energy efficiency thanks to its anti-glare ring reflector. High-quality finish providing enhanced corrosion protection for over 1400 hours.
Compliant with “Dark Sky” requirements, preventing upward light emissions (B1 U0 G1) and creating an environmentally responsible lighting environment.
Technical characteristics
| CRI | > 80 |
| IP | 65 |
| Range power (W) | 22 - 22 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 2970 - 3050 |
| Dali option |
|
| Version | Standard | DALI2 |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Version | Gross lumen output | Power | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| GM23F |
|
Standard | 2970 | 22,3 | 3000 | 65 |
|
| GM23M |
|
Standard | 2970 | 22,3 | 3000 | 65 |
|
| GM23S |
|
Standard | 2970 | 22,3 | 3000 | 65 |
|
| GM24F |
|
Standard | 3050 | 22,3 | 4000 | 65 |
|
| GM24M |
|
Standard | 3050 | 22,3 | 4000 | 65 |
|
| GM24S |
|
Standard | 3050 | 22,3 | 4000 | 65 |
|
| GM23DF |
|
DALI2 | 2970 | 22,3 | 3000 | 65 |
|
| GM23DM |
|
DALI2 | 2970 | 22,3 | 3000 | 65 |
|
| GM23DS |
|
DALI2 | 2970 | 22,3 | 3000 | 65 |
|
| GM24DF |
|
DALI2 | 3050 | 22,3 | 4000 | 65 |
|
| GM24DM |
|
DALI2 | 3050 | 22,3 | 4000 | 65 |
|
| GM24DS |
|
DALI2 | 3050 | 22,3 | 4000 | 65 |
|
* Net Lumen output is indicated in technical datasheet.
