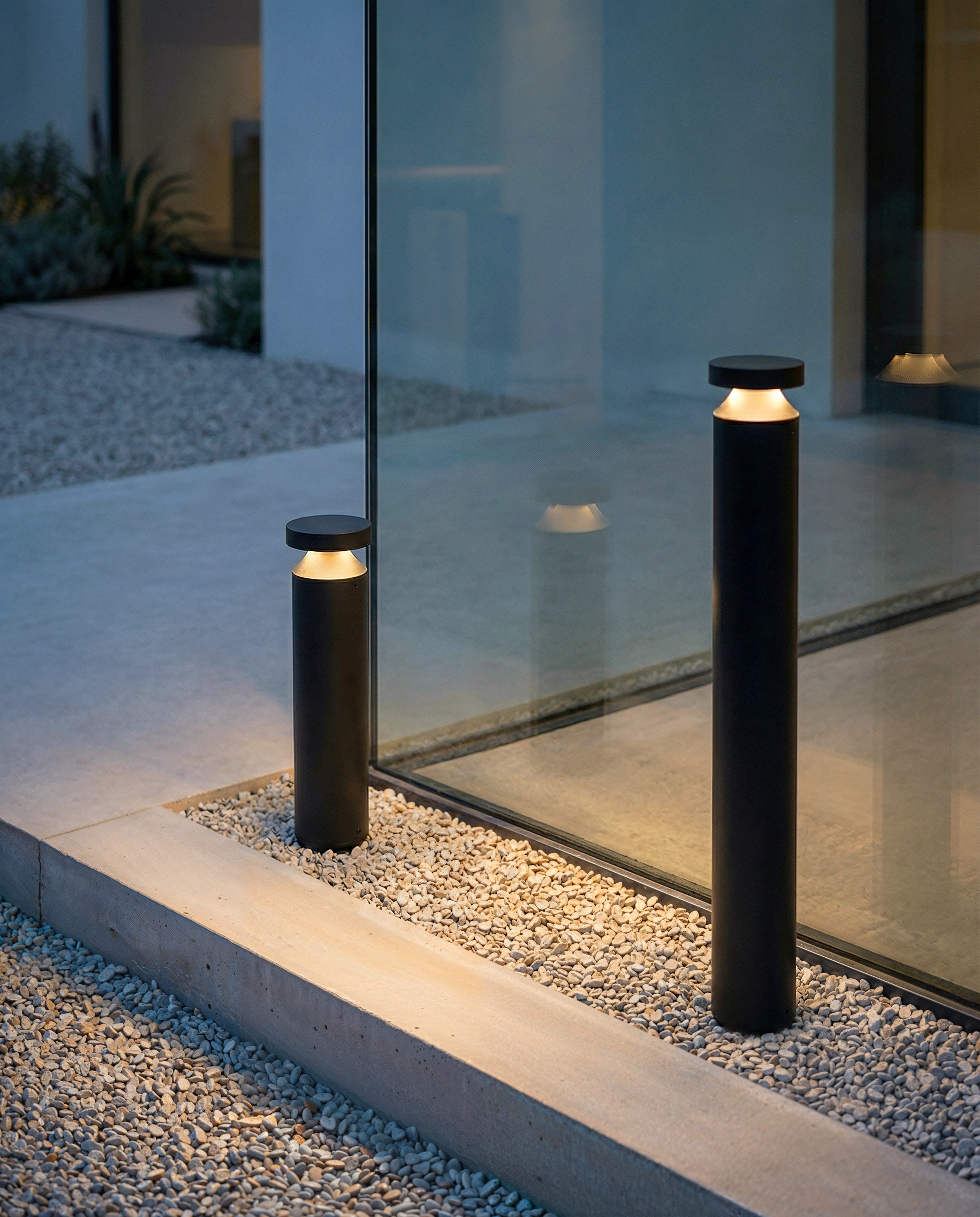

Signe
SIGNE is a range of bollards with an optical system designed to maximise spacing while maintaining excellent uniformity through 360° perimeter light emission. Its modular design allows easy separation and repair of components. High-quality finish providing enhanced corrosion protection for over 1400 hours.
Compliant with “Dark Sky” requirements, preventing upward light emissions (B1 U0 G1) and creating an environmentally responsible lighting environment.
Technical characteristics
| CRI | > 80 |
| IP | 65 |
| Range power (W) | 5 - 10 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 1085 - 2088 |
| Dali option |
|
| Version | Standard | DALI2 |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Version | Gross lumen output | Power | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| GSL03 |
|
Standard | 1085 | 5,9 | 3000 | 65 |
|
| GSS03 |
|
Standard | 1085 | 5,9 | 3000 | 65 |
|
| GSL04 |
|
Standard | 1158 | 5,9 | 4000 | 65 |
|
| GSS04 |
|
Standard | 1158 | 5,9 | 4000 | 65 |
|
| GSL13 |
|
Standard | 2070 | 10,9 | 3000 | 65 |
|
| GSS13 |
|
Standard | 2070 | 10,9 | 3000 | 65 |
|
| GSL14 |
|
Standard | 2088 | 10,9 | 4000 | 65 |
|
| GSS14 |
|
Standard | 2088 | 10,9 | 4000 | 65 |
|
| GSL03D |
|
DALI2 | 1085 | 5,9 | 3000 | 65 |
|
| GSS03D |
|
DALI2 | 1085 | 5,9 | 3000 | 65 |
|
| GSL04D |
|
DALI2 | 1158 | 5,9 | 4000 | 65 |
|
| GSS04D |
|
DALI2 | 1158 | 5,9 | 4000 | 65 |
|
| GSL13D |
|
DALI2 | 2070 | 10,9 | 3000 | 65 |
|
| GSS13D |
|
DALI2 | 2070 | 10,9 | 3000 | 65 |
|
| GSL14D |
|
DALI2 | 2088 | 10,9 | 4000 | 65 |
|
| GSS14D |
|
DALI2 | 2088 | 10,9 | 4000 | 65 |
|
* Net Lumen output is indicated in technical datasheet.
