Nassel

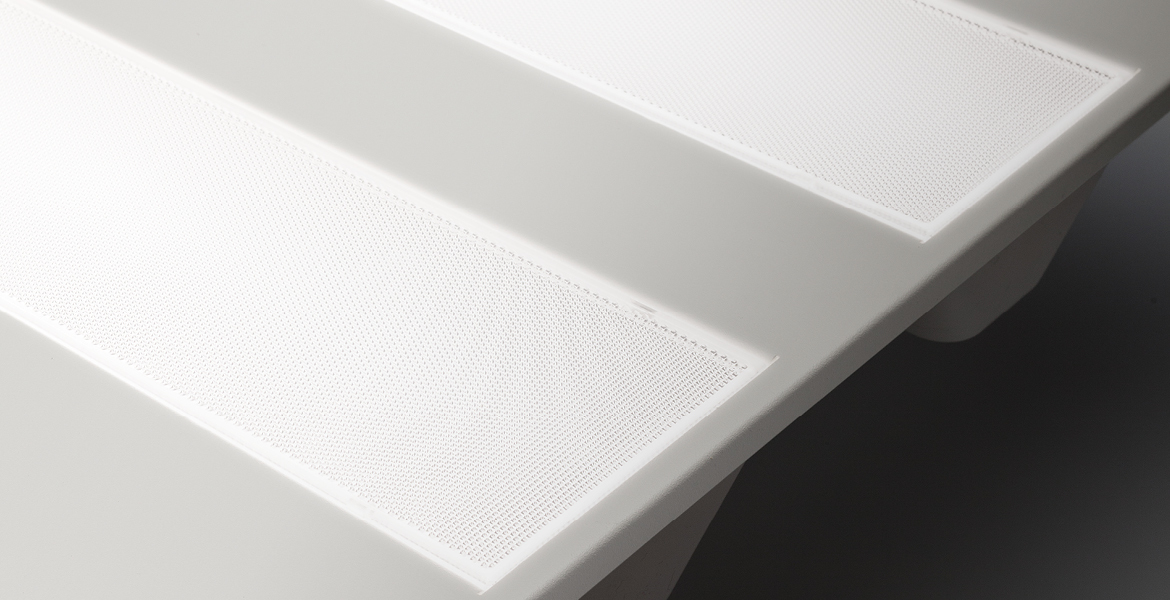

Nassel is an innovative LED luminaire model particularly suitable for modular ceilings. Achieves direct and comfortable light thanks to the combination of two diffusers (a microprismatic diffuser and an opal diffuser) and a highly reflective thermoplastic reflector.
Technical characteristics
| Installation | Recessed Mounting |
| Color | White |
| CRI | > 80 |
| IP | 20-44 |
| Range power (W) | 24 - 48 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 3400 - 7400 |
| Dali option |
|
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | Lum Calc | Version | Gross lumen output | Power | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| NS23B |
|
Standard | 3400 | 24 | 3000 | 20-44 |
|
| NS24B |
|
Standard | 3700 | 24 | 4000 | 20-44 |
|
| NM33B |
|
Standard | 5100 | 36 | 3000 | 20-44 |
|
| NS33B |
|
Standard | 5100 | 36 | 3000 | 20-44 |
|
| NM34B |
|
Standard | 5550 | 36 | 4000 | 20-44 |
|
| NS34B |
|
Standard | 5550 | 36 | 4000 | 20-44 |
|
| NM43B |
|
Standard | 6800 | 48 | 3000 | 20-44 |
|
| NS43B |
|
Standard | 6800 | 48 | 3000 | 20-44 |
|
| NS53B |
|
Standard | 6800 | 48 | 3000 | 20-44 |
|
| NM44B |
|
Standard | 7400 | 48 | 4000 | 20-44 |
|
| NS44B |
|
Standard | 7400 | 48 | 4000 | 20-44 |
|
| NS54B |
|
Standard | 7400 | 48 | 4000 | 20-44 |
|
| NS23DB |
|
DALI 1 | 3400 | 24 | 3000 | 20-44 |
|
| NS24DB |
|
DALI 1 | 3700 | 24 | 4000 | 20-44 |
|
| NM33DB |
|
DALI 1 | 5100 | 36 | 3000 | 20-44 |
|
| NS33DB |
|
DALI 1 | 5100 | 36 | 3000 | 20-44 |
|
| NM34DB |
|
DALI 1 | 5550 | 36 | 4000 | 20-44 |
|
| NS34DB |
|
DALI 1 | 5550 | 36 | 4000 | 20-44 |
|
| NM43DB |
|
DALI 1 | 6800 | 48 | 3000 | 20-44 |
|
| NS43DB |
|
DALI 1 | 6800 | 48 | 3000 | 20-44 |
|
| NS53DB |
|
DALI 1 | 6800 | 48 | 3000 | 20-44 |
|
| NM44DB |
|
DALI 1 | 7400 | 48 | 4000 | 20-44 |
|
| NS44DB |
|
DALI 1 | 7400 | 48 | 4000 | 20-44 |
|
| NS54DB |
|
DALI 1 | 7400 | 48 | 4000 | 20-44 |
|
* Net Lumen output is indicated in technical datasheet.
