Aqa

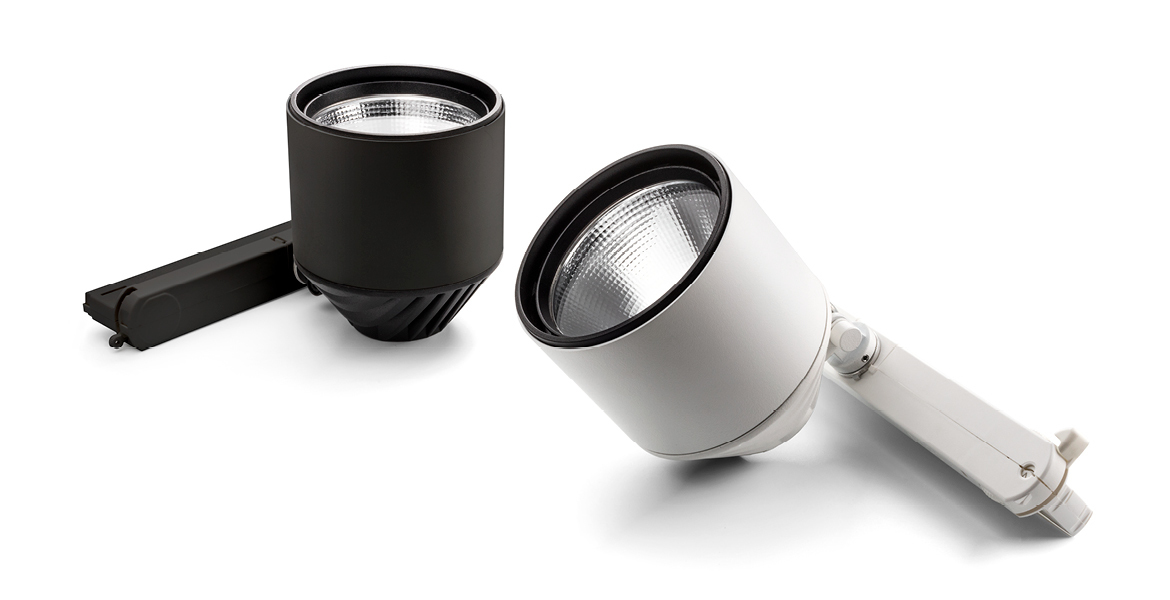

AQA is the new cylindric projector: elegant, attractive and tough. Three different optics available: Intensive (15º), medium (25º) and extensive (45º). AQA is available in white, grey and black finishings.
Technical characteristics
| Installation | Track |
| Color | White | Black |
| CRI | > 80 |
| IP | 20 |
| Range power (W) | 11 - 25 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 1930 - 3780 |
| Dali option |
|
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | Lum Calc | Version | Gross lumen output | Power | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| PQ23FB |
|
Standard | 1930 | 11,8 | 3000 | 20 |
|
| PQ23FN |
|
Standard | 1930 | 11,8 | 3000 | 20 |
|
| PQ23MB |
|
Standard | 1930 | 11,8 | 3000 | 20 |
|
| PQ23MN |
|
Standard | 1930 | 11,8 | 3000 | 20 |
|
| PQ23SB |
|
Standard | 1930 | 11,8 | 3000 | 20 |
|
| PQ23SN |
|
Standard | 1930 | 11,8 | 3000 | 20 |
|
| PQ24FB |
|
Standard | 2050 | 11,8 | 4000 | 20 |
|
| PQ24FN |
|
Standard | 2050 | 11,8 | 4000 | 20 |
|
| PQ24MB |
|
Standard | 2050 | 11,8 | 4000 | 20 |
|
| PQ24MN |
|
Standard | 2050 | 11,8 | 4000 | 20 |
|
| PQ24SB |
|
Standard | 2050 | 11,8 | 4000 | 20 |
|
| PQ24SN |
|
Standard | 2050 | 11,8 | 4000 | 20 |
|
| PQ33FB |
|
Standard | 2650 | 19,1 | 3000 | 20 |
|
| PQ33FN |
|
Standard | 2650 | 19,1 | 3000 | 20 |
|
| PQ33MB |
|
Standard | 2650 | 19,1 | 3000 | 20 |
|
| PQ33MN |
|
Standard | 2650 | 19,1 | 3000 | 20 |
|
| PQ33SB |
|
Standard | 2650 | 19,1 | 3000 | 20 |
|
| PQ33SN |
|
Standard | 2650 | 19,1 | 3000 | 20 |
|
| PQ34FB |
|
Standard | 2850 | 19,1 | 4000 | 20 |
|
| PQ34FN |
|
Standard | 2850 | 19,1 | 4000 | 20 |
|
| PQ34MB |
|
Standard | 2850 | 19,1 | 4000 | 20 |
|
| PQ34MN |
|
Standard | 2850 | 19,1 | 4000 | 20 |
|
| PQ34SB |
|
Standard | 2850 | 19,1 | 4000 | 20 |
|
| PQ34SN |
|
Standard | 2850 | 19,1 | 4000 | 20 |
|
| PQ43FB |
|
Standard | 3580 | 25,1 | 3000 | 20 |
|
| PQ43FN |
|
Standard | 3580 | 25,1 | 3000 | 20 |
|
| PQ43MB |
|
Standard | 3580 | 25,1 | 3000 | 20 |
|
| PQ43MN |
|
Standard | 3580 | 25,1 | 3000 | 20 |
|
| PQ43SB |
|
Standard | 3580 | 25,1 | 3000 | 20 |
|
| PQ43SN |
|
Standard | 3580 | 25,1 | 3000 | 20 |
|
| PQ44FB |
|
Standard | 3780 | 25,1 | 4000 | 20 |
|
| PQ44FN |
|
Standard | 3780 | 25,1 | 4000 | 20 |
|
| PQ44MB |
|
Standard | 3780 | 25,1 | 4000 | 20 |
|
| PQ44MN |
|
Standard | 3780 | 25,1 | 4000 | 20 |
|
| PQ44SB |
|
Standard | 3780 | 25,1 | 4000 | 20 |
|
| PQ44SN |
|
Standard | 3780 | 25,1 | 4000 | 20 |
|
| PQ23DFB |
|
DALI 1 | 1930 | 11,8 | 3000 | 20 |
|
| PQ23DFN |
|
DALI 1 | 1930 | 11,8 | 3000 | 20 |
|
| PQ23DMB |
|
DALI 1 | 1930 | 11,8 | 3000 | 20 |
|
| PQ23DMN |
|
DALI 1 | 1930 | 11,8 | 3000 | 20 |
|
| PQ23DSB |
|
DALI 1 | 1930 | 11,8 | 3000 | 20 |
|
| PQ23DSN |
|
DALI 1 | 1930 | 11,8 | 3000 | 20 |
|
| PQ24DFB |
|
DALI 1 | 2050 | 11,8 | 4000 | 20 |
|
| PQ24DFN |
|
DALI 1 | 2050 | 11,8 | 4000 | 20 |
|
| PQ24DMB |
|
DALI 1 | 2050 | 11,8 | 4000 | 20 |
|
| PQ24DMN |
|
DALI 1 | 2050 | 11,8 | 4000 | 20 |
|
| PQ24DSB |
|
DALI 1 | 2050 | 11,8 | 4000 | 20 |
|
| PQ24DSN |
|
DALI 1 | 2050 | 11,8 | 4000 | 20 |
|
| PQ33DFB |
|
DALI 1 | 2650 | 17,4 | 3000 | 20 |
|
| PQ33DFN |
|
DALI 1 | 2650 | 17,4 | 3000 | 20 |
|
| PQ33DMB |
|
DALI 1 | 2650 | 17,4 | 3000 | 20 |
|
| PQ33DMN |
|
DALI 1 | 2650 | 17,4 | 3000 | 20 |
|
| PQ33DSB |
|
DALI 1 | 2650 | 17,4 | 3000 | 20 |
|
| PQ33DSN |
|
DALI 1 | 2650 | 17,4 | 3000 | 20 |
|
| PQ34DFB |
|
DALI 1 | 2850 | 17,4 | 4000 | 20 |
|
| PQ34DFN |
|
DALI 1 | 2850 | 17,4 | 4000 | 20 |
|
| PQ34DMB |
|
DALI 1 | 2850 | 17,4 | 4000 | 20 |
|
| PQ34DMN |
|
DALI 1 | 2850 | 17,4 | 4000 | 20 |
|
| PQ34DSB |
|
DALI 1 | 2850 | 17,4 | 4000 | 20 |
|
| PQ34DSN |
|
DALI 1 | 2850 | 17,4 | 4000 | 20 |
|
| PQ43DFB |
|
DALI 1 | 3580 | 25,1 | 3000 | 20 |
|
| PQ43DFN |
|
DALI 1 | 3580 | 25,1 | 3000 | 20 |
|
| PQ43DMB |
|
DALI 1 | 3580 | 25,1 | 3000 | 20 |
|
| PQ43DMN |
|
DALI 1 | 3580 | 25,1 | 3000 | 20 |
|
| PQ43DSB |
|
DALI 1 | 3580 | 25,1 | 3000 | 20 |
|
| PQ43DSN |
|
DALI 1 | 3580 | 25,1 | 3000 | 20 |
|
| PQ44DFB |
|
DALI 1 | 3780 | 25,1 | 4000 | 20 |
|
| PQ44DFN |
|
DALI 1 | 3780 | 25,1 | 4000 | 20 |
|
| PQ44DMB |
|
DALI 1 | 3780 | 25,1 | 4000 | 20 |
|
| PQ44DMN |
|
DALI 1 | 3780 | 25,1 | 4000 | 20 |
|
| PQ44DSB |
|
DALI 1 | 3780 | 25,1 | 4000 | 20 |
|
| PQ44DSN |
|
DALI 1 | 3780 | 25,1 | 4000 | 20 |
|
* Net Lumen output is indicated in technical datasheet.
