Nahika Micro

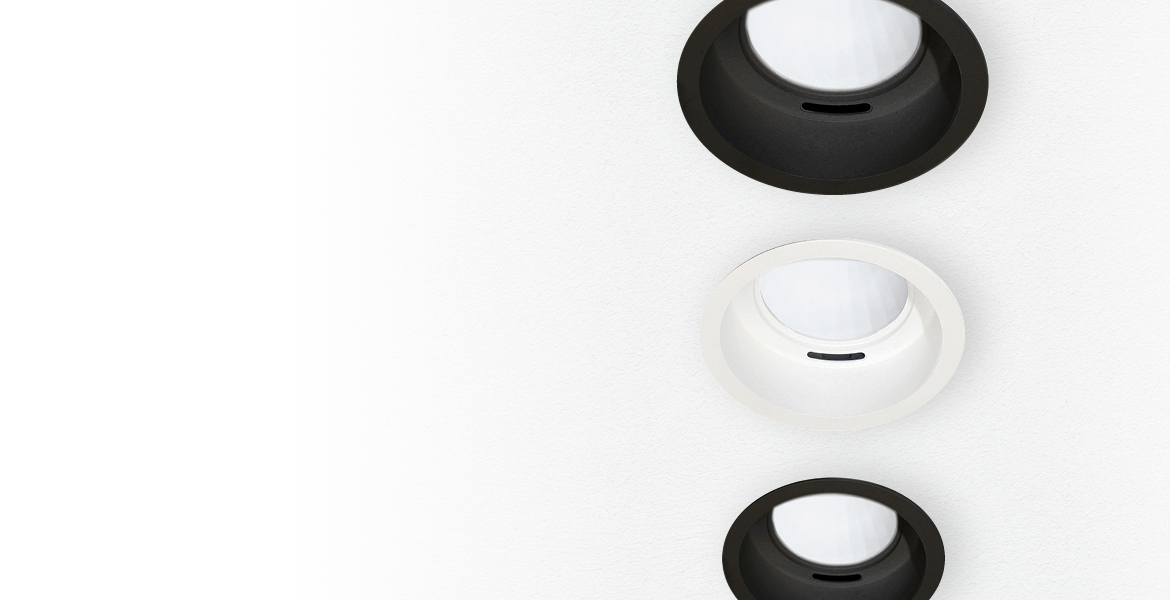

NAHIKA is a range of downlights available in three sizes in rounded or square formats. They incorporate a high-performance aluminium heat sink which optimises the efficiency of the set. Installation frame manufactured in aluminium and decorative frame in technical plastic. A wall-washer version is also available. Ceiling installation is achieved by means of a simple worm gear lock and aluminium anchor system.

Nahika Micro

Technical characteristics

Installation	Recessed Mounting
CRI	> 80
IP	20

Range power (W)	14 - 14
Color temperature (ºK)	3000 \| 4000
Light range	1350 - 1490
Dali option
Version	Standard \| DALI2

Downloads

References

Use the filters to see the model reference of this product that best fits your project:

Reference	Net lumen output	Power	Efficiency (lm/W)	Temperature	CRI
WLPRB13B	1244	14	80.0	3000	80
WLPRB13N	1244	14	80.0	3000	80
WLPRF13B	1244	14	80.0	3000	80
WLPRF13FB	1190	14	77.0	3000	80
WLPRF13FN	945	14	61.0	3000	80
WLPRF13N	1244	14	80.0	3000	80
WLPRB14B	1373	14	89.0	4000	80
WLPRB14N	1373	14	89.0	4000	80
WLPRF14B	1373	14	89.0	4000	80
WLPRF14FB	1314	14	85.0	4000	80
WLPRF14FN	1043	14	67.0	4000	80
WLPRF14N	1373	14	89.0	4000	80
WLPRB13DB	1244	14	80.0	3000	80
WLPRB13DN	1244	14	80.0	3000	80
WLPRF13DB	1244	14	80.0	3000	80
WLPRF13DN	1244	14	80.0	3000	80
WLPRF13FDB	1190	14	77.0	3000	80
WLPRF13FDN	945	14	61.0	3000	80
WLPRB14DB	1373	14	89.0	4000	80
WLPRB14DN	1373	14	89.0	4000	80
WLPRF14DB	1373	14	89.0	4000	80
WLPRF14DN	1373	14	89.0	4000	80
WLPRF14FDB	1314	14	85.0	4000	80
WLPRF14FDN	1043	14	67.0	4000	80
