Nahika Q

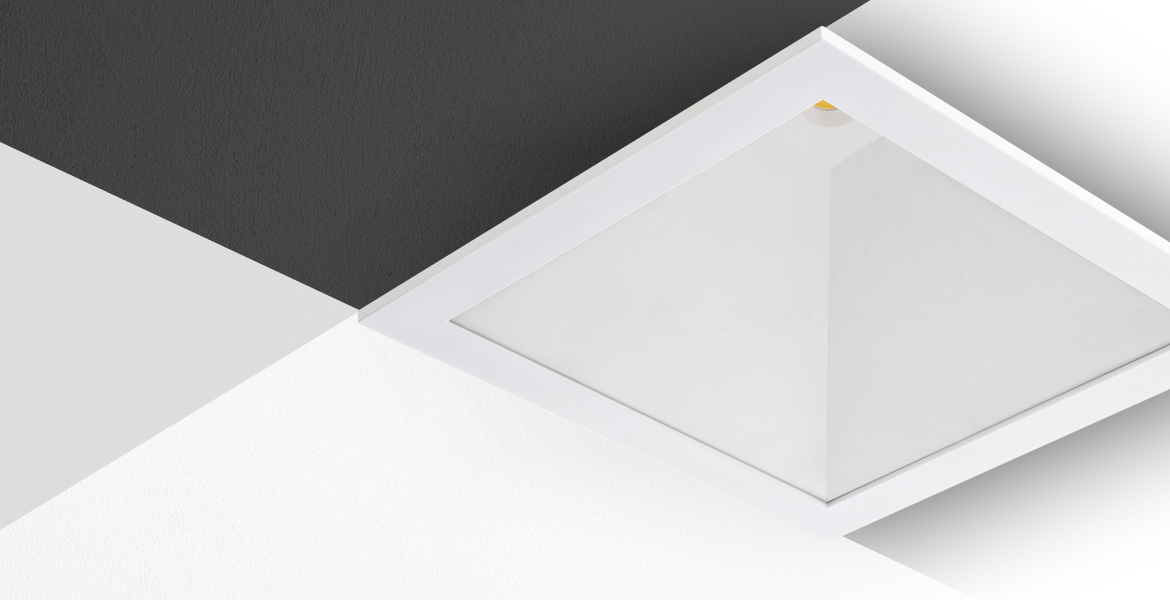

NAHIKA is a range of downlights available in three sizes in rounded or square formats. They incorporate a high-performance aluminium heat sink which optimises the efficiency of the set. Installation frame manufactured in aluminium and decorative frame in technical plastic. A wall-washer version is also available. Ceiling installation is achieved by means of a simple worm gear lock and aluminium anchor system.

Nahika Q

Intro
Characteristics
Downloads
References

Nahika Q

Technical characteristics

Installation	Recessed Mounting
CRI	> 80
IP	20 \| 20-54

Range power (W)	17 - 54
Color temperature (ºK)	2700 \| 3000 \| 4000 \| 5000
Light range	2315 - 8450
Dali option
Version	Standard \| DALI2

Downloads

References

Use the filters to see the model reference of this product that best fits your project:

Reference	Net lumen output	Power	Efficiency (lm/W)	Temperature	CRI
WLQMB	2199	39,4	50.0	4000	82
WLQBB	2246	24,5	83.0	2700	95
WLQ33B	2517	17,4	131.0	3000	80
WLQ33OB	2284	17,4	119.0	3000	80
WLQ33TB	2411	17,4	126.0	3000	80
WLQ34B	2707	17,4	141.0	4000	80
WLQ34OB	2456	17,4	128.0	4000	80
WLQ34TB	2593	17,4	135.0	4000	80
WLQFB	3087	25,5	110.0	5000	90
WLQ43B	3401	25,1	123.0	3000	80
WLQ43OB	3085	25,1	111.0	3000	80
WLQ43TB	3257	25,1	118.0	3000	80
WLQ44B	3591	25,1	130.0	4000	80
WLQ44OB	3250	25,1	117.0	4000	80
WLQ44TB	3439	25,1	124.0	4000	80
WLQ53B	4512	39,4	104.0	3000	80
WLQ53OB	4094	39,4	94.0	3000	80
WLQ53TB	4322	39,4	99.0	3000	80
WLQ54B	4731	39,4	109.0	4000	80
WLQ54OB	4292	39,4	99.0	4000	80
WLQ54TB	4531	39,4	104.0	4000	80
WLQ63B	5510	35,2	142.0	3000	80
WLQ63OB	4999	35,2	129.0	3000	80
WLQ63TB	5278	35,2	136.0	3000	80
WLQ64B	5795	35,2	149.0	4000	80
WLQ64OB	5258	35,2	135.0	4000	80
WLQ64TB	5551	35,2	143.0	4000	80
WLQ83B	7619	54,6	127.0	3000	80
WLQ83OB	6913	54,6	115.0	3000	80
WLQ83TB	7298	54,6	121.0	3000	80
WLQ84B	8027	54,6	133.0	4000	80
WLQ84OB	7283	54,6	121.0	4000	80
WLQ84TB	7689	54,6	128.0	4000	80
WLQ33DB	2517	17,4	131.0	3000	80
WLQ33DOB	2279	17,4	119.0	3000	80
WLQ33DTB	2411	17,4	126.0	3000	80
WLQ34DB	2707	17,4	141.0	4000	80
WLQ34DOB	2456	17,4	128.0	4000	80
WLQ34DTB	2593	17,4	135.0	4000	80
WLQ43DB	3401	25,1	123.0	3000	80
WLQ43DOB	3085	25,1	111.0	3000	80
WLQ43DTB	3257	25,1	118.0	3000	80
WLQ44DB	3591	25,1	130.0	4000	80
WLQ44DOB	3258	25,1	118.0	4000	80
WLQ44DTB	3439	25,1	124.0	4000	80
WLQ53DB	4512	39,4	104.0	3000	80
WLQ53DOB	4094	39,4	94.0	3000	80
WLQ53DTB	4322	39,4	99.0	3000	80
WLQ54DB	4731	39,4	109.0	4000	80
WLQ54DOB	4292	39,4	99.0	4000	80
WLQ54DTB	4531	39,4	104.0	4000	80
WLQ63DB	5510	35,2	142.0	3000	80
WLQ63DOB	4999	35,2	129.0	3000	80
WLQ63DTB	5278	35,2	136.0	3000	80
WLQ64DB	5795	35,2	149.0	4000	80
WLQ64DOB	5258	35,2	135.0	4000	80
WLQ64DTB	5551	35,2	143.0	4000	80
WLQ83DB	7619	54,6	127.0	3000	80
WLQ83DOB	6913	54,6	115.0	3000	80
WLQ83DTB	7298	54,6	121.0	3000	80
WLQ84DB	8027	54,6	133.0	4000	80
WLQ84DOB	7283	54,6	121.0	4000	80
WLQ84DTB	7689	54,6	128.0	4000	80
