Hat

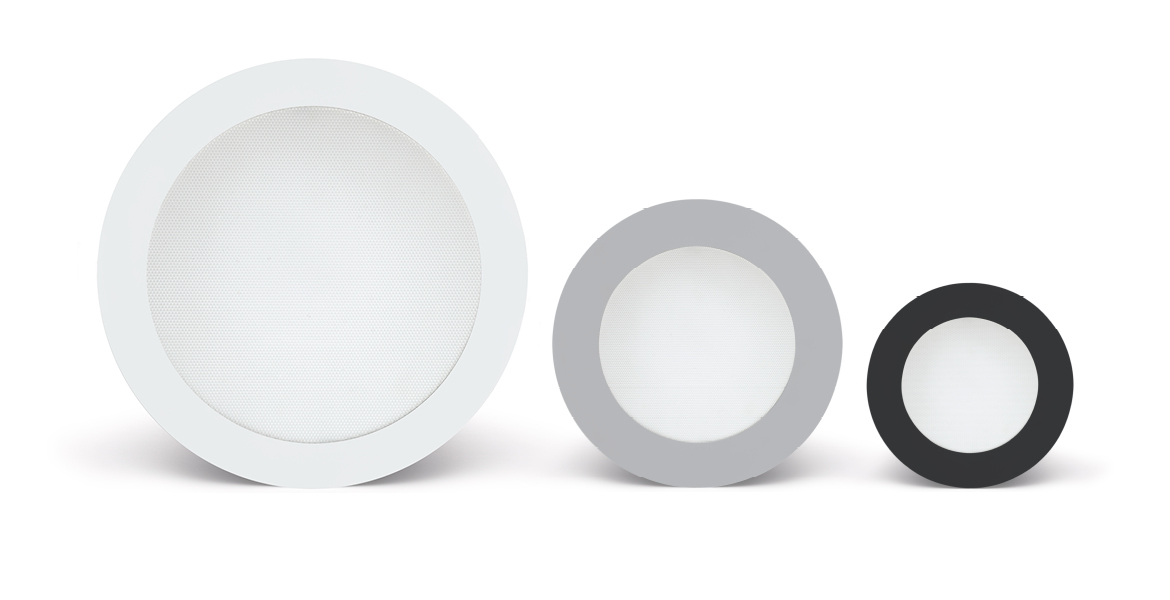

Hat is the latest generation of LED Downlights: With only 44mm height and a performance of 75% it can reach up to 2.400 lumen output. HAT is a compact downlight of high efficiency, with DALI version available and EH1 50.000h L70B10 / EH2 70.000h L70B10 life expectancy. As a new product within the HAT family, HAT HR is a revision of the popular Normalit downlight. A new design that keeps the original essence and has a lower glare.

Hat

Technical characteristics

Installation	Recessed Mounting
CRI	> 80
IP	20-54

Range power (W)	13 - 20
Color temperature (ºK)	3000 \| 4000 \| 5000 \| 5700 \| 6000
Light range	1500 - 3250
Dali option
Version	Standard \| DALI2

Downloads

References

Use the filters to see the model reference of this product that best fits your project:

Reference	Net lumen output	Power	Efficiency (lm/W)	Temperature	CRI
EH13B	1126	13	78.0	3000	80
EH13G	1126	13	78.0	3000	80
EH13N	1126	13	78.0	3000	80
EH14B	1201	13	84.0	4000	80
EH14G	1201	13	84.0	4000	80
EH14N	1201	13	84.0	4000	80
EH15B	1220	13	85.0	5000	80
EH15G	1220	13	85.0	5000	80
EH15N	1220	13	85.0	5000	80
EH16B	1220	13	85.0	6000	80
EH16G	1220	13	85.0	6000	80
EH16N	1220	13	85.0	6000	80
EH1P3B	1430	13	100.0	3000	90
EH1P3G	1430	13	100.0	3000	90
EH1P3N	1430	13	100.0	3000	90
EH1P4B	1483	13	103.0	4000	90
EH1P4G	1483	13	103.0	4000	90
EH1P4N	1483	13	103.0	4000	90
EH23B	1727	20,5	76.0	3000	80
EH23G	1727	20,5	76.0	3000	80
EH23N	1727	20,5	76.0	3000	80
EH24B	1802	20,5	80.0	4000	80
EH24G	1802	20,5	80.0	4000	80
EH24N	1802	20,5	80.0	4000	80
EH25B	1824	20,5	81.0	5000	80
EH25G	1824	20,5	81.0	5000	80
EH25N	1824	20,5	81.0	5000	80
EH26B	1828	20,5	81.0	5700	80
EH26G	1828	20,5	81.0	5700	80
EH26N	1828	20,5	81.0	5700	80
EH2P3B	2352	20,5	104.0	3000	90
EH2P3G	2352	20,5	104.0	3000	90
EH2P3N	2352	20,5	104.0	3000	90
EH2P4B	2440	20,5	108.0	4000	90
EH2P4G	2440	20,5	108.0	4000	90
EH2P4N	2440	20,5	108.0	4000	90
EH1P3DB	1430	13	100.0	3000	90
EH1P3DG	1430	13	100.0	3000	90
EH1P3DN	1430	13	100.0	3000	90
EH1P4DB	1483	13	103.0	4000	90
EH1P4DG	1483	13	103.0	4000	90
EH1P4DN	1483	13	103.0	4000	90
EH2P3DB	2352	20,5	104.0	3000	90
EH2P3DG	2352	20,5	104.0	3000	90
EH2P3DN	2352	20,5	104.0	3000	90
EH2P4DB	2440	20,5	108.0	4000	90
EH2P4DG	2440	20,5	108.0	4000	90
EH2P4DN	2440	20,5	108.0	4000	90
