Linnea Mixto

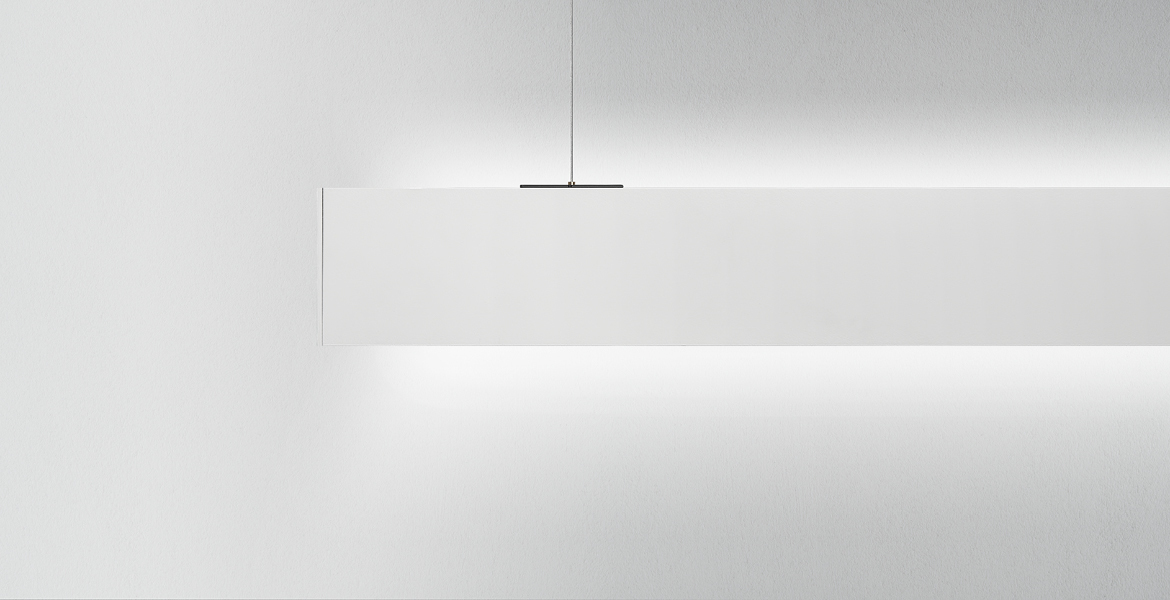

LINNEA is a linear luminaire built with an extruded aluminium profile for suspended installation, installation mounted to the ceiling or recessed installation. It stands out thanks to its minimal design and its microprismatic diffuder which generates very homogeneous lighting with optimal visual comfort. As a new product, the range is increased with a LINNEA MIXTO version, with direct / Indirect lighting.
Technical characteristics
| Installation | Suspended |
| CRI | > 80 |
| IP | 30 |
| Range power (W) | 46 - 104 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 6510 - 16500 |
| Dali option |
|
| Version | Standard | DALI2 |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Version | Gross lumen output | Power | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| LM4L3OB |
|
Standard | 6510 | 46,9 | 3000 | 30 |
|
| LM4L3OG |
|
Standard | 6510 | 46,9 | 3000 | 30 |
|
| LM4L4OB |
|
Standard | 7000 | 46,9 | 4000 | 30 |
|
| LM4L4OG |
|
Standard | 7000 | 46,9 | 4000 | 30 |
|
| LM4H3OB |
|
Standard | 9800 | 66,5 | 3000 | 30 |
|
| LM4H3OG |
|
Standard | 9800 | 66,5 | 3000 | 30 |
|
| LM6L3OB |
|
Standard | 10230 | 73,7 | 3000 | 30 |
|
| LM6L3OG |
|
Standard | 10230 | 73,7 | 3000 | 30 |
|
| LM4H4OB |
|
Standard | 10500 | 66,5 | 4000 | 30 |
|
| LM4H4OG |
|
Standard | 10500 | 66,5 | 4000 | 30 |
|
| LM6L4OB |
|
Standard | 11000 | 73,7 | 4000 | 30 |
|
| LM6L4OG |
|
Standard | 11000 | 73,7 | 4000 | 30 |
|
| LM6H3OB |
|
Standard | 15400 | 104,5 | 3000 | 30 |
|
| LM6H3OG |
|
Standard | 15400 | 104,5 | 3000 | 30 |
|
| LM6H4OB |
|
Standard | 16500 | 104,5 | 4000 | 30 |
|
| LM6H4OG |
|
Standard | 16500 | 104,5 | 4000 | 30 |
|
| LM4L3DOB |
|
DALI2 | 6510 | 46,9 | 3000 | 30 |
|
| LM4L3DOG |
|
DALI2 | 6510 | 46,9 | 3000 | 30 |
|
| LM4L4DOB |
|
DALI2 | 7000 | 46,9 | 4000 | 30 |
|
| LM4L4DOG |
|
DALI2 | 7000 | 46,9 | 4000 | 30 |
|
| LM4H3DOB |
|
DALI2 | 9800 | 66,5 | 3000 | 30 |
|
| LM4H3DOG |
|
DALI2 | 9800 | 66,5 | 3000 | 30 |
|
| LM6L3DOB |
|
DALI2 | 10230 | 73,7 | 3000 | 30 |
|
| LM6L3DOG |
|
DALI2 | 10230 | 73,7 | 3000 | 30 |
|
| LM4H4DOB |
|
DALI2 | 10500 | 66,5 | 4000 | 30 |
|
| LM4H4DOG |
|
DALI2 | 10500 | 66,5 | 4000 | 30 |
|
| LM6L4DOB |
|
DALI2 | 11000 | 73,7 | 4000 | 30 |
|
| LM6L4DOG |
|
DALI2 | 11000 | 73,7 | 4000 | 30 |
|
| LM6H3DOB |
|
DALI2 | 15400 | 104,5 | 3000 | 30 |
|
| LM6H3DOG |
|
DALI2 | 15400 | 104,5 | 3000 | 30 |
|
| LM6H4DOB |
|
DALI2 | 16500 | 104,5 | 4000 | 30 |
|
| LM6H4DOG |
|
DALI2 | 16500 | 104,5 | 4000 | 30 |
|
* Net Lumen output is indicated in technical datasheet.
Accessories
